tRPC File Uploads to AWS S3 with Next.js

February 2, 2025 - 7 min read

In this blog post, we'll walk through the process of uploading files and images to an Amazon S3 bucket using tRPC and Next.js. We'll cover generating presigned URLs, uploading files to S3, saving file paths in a database, and displaying the uploaded files in the frontend.

Overview of the File Upload Flow

Since trpc doesn't multipart form data directly, we have to find out way to upload file to s3 without going to trpc server. While there are few examples demonstrating the use of form data directly with tRPC, several GitHub issues highlight challenges with this approach.

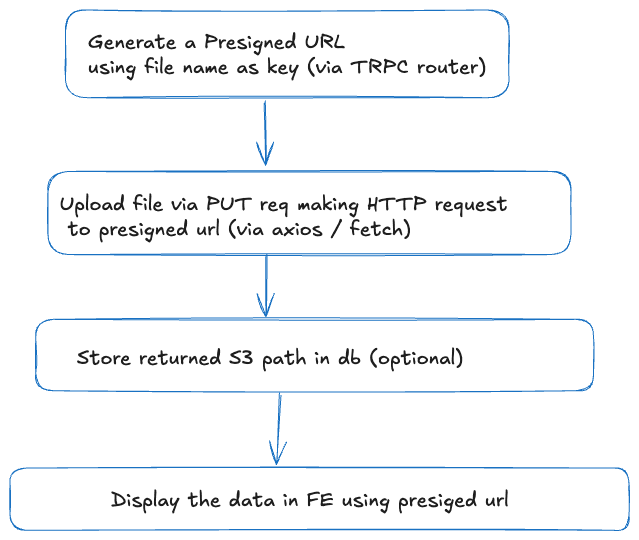

trpc image upload flow diagram

The general file upload process follows these steps:

  • Generate a Presigned URL: Create a presigned URL for uploading the file to S3 using a unique key (e.g., the file name).

  • Upload the File: Use the presigned URL to upload the image to S3 via a PUT request.

  • Save the File Path: Store the file path in your database for future reference.

  • Display the File: Retrieve and display the uploaded file in the frontend using the S3 URL.

Prerequisites

Before we begin, ensure you have the following packages installed:

npm install --save @paralleldrive/cuid2 @aws-sdk/client-s3 @aws-sdk/s3-request-presigner zod axios

The @paralleldrive/cuid2 package is used to generate unique IDs for file names, eliminating the need to manually specify them. Alternatively, you can use libraries like uuid or nanoid.

Ensure you have a Next.js project set up with tRPC as per the example in their GitHub repository. For the latest app directory structure, follow this example.

Additionally, you need an AWS account and an S3 bucket configured. Make sure you have your AWS credentials and bucket details ready.

Setting Up the S3 Service

First, let's create a service to handle interactions with S3. This service will generate presigned URLs for file uploads and retrieve signed URLs for accessing uploaded files.

// s3/s3.service.ts

import {
  GetObjectCommand,
  PutObjectCommand,
  S3,
  type S3ClientConfig,
} from "@aws-sdk/client-s3";
import { getSignedUrl } from "@aws-sdk/s3-request-presigner";

export const PUT_ASSETS_EXPIRES_IN = 4 * 60; // 4 minutes
export const GET_ASSETS_EXPIRES_IN = 4 * 60 * 60; // 4 hours
export const FOLDER = "attachments"; // Customize this folder name as needed

export interface S3DriverOptions extends S3ClientConfig {
  bucketName: string;
  region: string;
}

export class S3Service {
  private s3Client: S3;
  private bucketName: string;

  constructor(options: S3DriverOptions) {
    const { bucketName, region, ...s3Options } = options;

    if (!(bucketName && region)) {
      throw new Error("Bucket name and region are required");
    }

    this.s3Client = new S3({ ...s3Options, region });
    this.bucketName = bucketName;
  }

  async getUrlToUpload(params: { key: string; mimeType: string }) {
    const command = new PutObjectCommand({
      Bucket: this.bucketName,
      Key: `${FOLDER}/${params.key}`,
      ContentType: params.mimeType,
    });

    const url = await getSignedUrl(this.s3Client, command, {
      expiresIn: PUT_ASSETS_EXPIRES_IN,
    });

    return {
      url,
      path: `${FOLDER}/${params.key}`,
    };
  }

  async getSignedAssetUrl(key: string) {
    const command = new GetObjectCommand({
      Bucket: this.bucketName,
      Key: key,
    });
    return getSignedUrl(this.s3Client, command, {
      expiresIn: GET_ASSETS_EXPIRES_IN,
    });
  }

  async deleteSignedFile(key: string) {
    return this.s3Client.deleteObject({
      Bucket: this.bucketName,
      Key: key,
    });
  }
}

S3 Configuration

Next, configure the S3 service with your AWS credentials and bucket details.

Be sure to add following environment variables to your .env file:

AWS_S3_REGION=your-region
AWS_S3_ENDPOINT=your-endpoint
AWS_S3_BUCKET_NAME=your-bucket-name
AWS_ACCESS_KEY_ID=your-access-key-id
AWS_SECRET_ACCESS_KEY=your-secret-access-key
// s3/config.ts
import { S3Service } from "./s3.service";

export const s3Driver = new S3Service({
  region: process.env.AWS_S3_REGION,
  endpoint: process.env.AWS_S3_ENDPOINT,
  bucketName: process.env.AWS_S3_BUCKET_NAME,
  credentials: {
    accessKeyId: process.env.AWS_ACCESS_KEY_ID,
    secretAccessKey: process.env.AWS_SECRET_ACCESS_KEY,
  },
  forcePathStyle: true,
});

Creating the tRPC Router for File Uploads

Now, let's create a tRPC router to handle file uploads. This router will generate presigned URLs and optionally save file metadata to a database.

//  server/router/attachments.ts
import cuid2 from "@paralleldrive/cuid2";
import { TRPCError } from "@trpc/server";
import { z } from "zod";
import { getFileExtension } from "./utils";
import { createTRPCRouter, publicProcedure } from "./trpc";
import { s3Driver } from "./s3/s3-driver";

export const attachmentsRouter = createTRPCRouter({
  getPreSignedUrl: publicProcedure
    .input(
      z.object({
        mimeType: z.string(),
        fileName: z.string(),
      }),
    )
    .mutation(async ({ input }) => {
      try {
        const { fileName, mimeType } = input;
        const extension = getFileExtension(fileName);
        const id = cuid2.createId();
        const attachmentKey = `${id}${extension ? `.${extension}` : ""}`;

        const { url, path } = await s3Driver.getUrlToUpload({
          key: attachmentKey,
          mimeType,
        });

        // Optional: Save file metadata to the database
        //   const attachment = await prisma.attachment.create({
        //   data: {
        //     fullPath: path,
        //     userId: context.user?.id,
        //   },
        // });

        return {
          presignedUrl: url,
          path,
        };
      } catch (error) {
        throw new TRPCError({
          code: "BAD_REQUEST",
          message: "Error creating presigned URL",
        });
      }
    }),
});

Utility Functions

Here are some utility functions to help with file extensions and S3 URL generation.

// utils.ts
import axios from "axios";

export const getFileExtension = (name: string) => {
  return name.split(".").pop() || "";
};

const BASE_PATH = "https://your-bucket-name.s3.amazonaws.com"; // Replace with your bucket name

export const generateS3Url = (path?: string | null) => {
  if (!path) return;
  if (path.startsWith("https:")) return path;
  return `${BASE_PATH}/${path}`;
};

export async function uploadFileToS3({
  presignedUrl,
  file,
}: {
  presignedUrl: string;
  file: File;
}) {
  try {
    const result = await axios.put(presignedUrl, file, {
      headers: {
        "Content-Type": file.type,
      },
    });
    return result;
  } catch (error) {
    console.error("Error uploading file to S3:", error);
    return undefined;
  }
}

Frontend Implementation

For the frontend, we'll create a file uploader component to handle file selection and upload. This example uses shadcn for UI components, but you can adapt it to your preferred library. The example below mightnot cover all usecases for file upload but this can be a good starting point.

File uploader component

// components/ImageUploader.tsx
"use client";

import { api } from "@/trpc/client"; // Import your tRPC client from the trpc folder
import { generateS3Url, uploadFileToS3 } from "./utils";
import { Avatar, AvatarFallback, AvatarImage } from "@/components/avatar";
import { Button } from "@/components/button";
import { Input } from "@/components/input";
import { Spinner } from "@/components/spinner";
import { cn } from "@/lib/utils";
import { UserIcon } from "lucide-react";
import React, { useState } from "react";

type ImageUploaderProps = {
  value?: string | null;
  onChange?: (path: string | null) => void;
  className?: string;
};

export function ImageUploader({
  value,
  onChange,
  className,
}: ImageUploaderProps) {
  const [currentImage, setCurrentImage] = useState<string | undefined>(
    value || undefined,
  );
  const [loading, setLoading] = useState(false);
  const inputRef = React.useRef<HTMLInputElement>(null);

  const handleChange = async (e: React.ChangeEvent<HTMLInputElement>) => {
    setLoading(true);
    if (e.target.files && e.target.files.length > 0) {
      const selectedFile = e.target.files[0];

      const response = await api.attachments.getPreSignedUrl.mutate({
        fileName: selectedFile.name,
        mimeType: selectedFile.type,
      });

      await uploadFileToS3({
        file: selectedFile,
        presignedUrl: response.presignedUrl,
      });

      setCurrentImage(generateS3Url(response.path));
      onChange?.(response.path);
    }
    setLoading(false);
  };

  return (
    <div className={cn("relative h-40 w-40", className)}>
      <Avatar className="h-full w-full">
        <AvatarImage src={currentImage} className="object-cover" />
        <AvatarFallback className="bg-secondary">
          <UserIcon className="h-16 w-16" />
        </AvatarFallback>
      </Avatar>

      <Input
        ref={inputRef}
        type="file"
        className="hidden"
        onChange={handleChange}
        accept="image/*"
        disabled={loading}
      />
      <Button
        type="button"
        onClick={() => inputRef.current?.click()}
        disabled={loading}
      >
        {loading ? <Spinner /> : "Upload Image"}
      </Button>
    </div>
  );
}

Using the File Uploader in a Form

Finally, integrate the ImageUploader component into a form using react-hook-form and zod for validation. This example uses the UserForm component to create a form for uploading user profile images.

// components/UserForm.tsx
"use client";

import { ImageUploader } from "@/components/ImageUploader";
import { Button } from "@/components/button";
import {
  Form,
  FormControl,
  FormField,
  FormItem,
  FormLabel,
  FormMessage,
} from "@/components/form";
import { Input } from "@/components/input";
import { zodResolver } from "@hookform/resolvers/zod"
import { useForm } from "react-hook-form"
import { z } from "zod"

const formSchema = z.object({
  logo: z.string().nullable(),
});

export const UserForm = () => {
  const form = useForm<z.infer<typeof formSchema>>({
    resolver: zodResolver(formSchema),
    defaultValues: {
      logo: null,
    },
  })

  const handleSubmit = () => {
    // Handle form submission
  };

  return (
    <Form {...form}>
      <form onSubmit={form.handleSubmit(handleSubmit)}>
        <FormField
          control={form.control}
          name="logo"
          render={({ field }) => (
            <FormItem>
              <FormLabel>Logo</FormLabel>
              <FormControl>
                <ImageUploader value={field.value} onChange={field.onChange} />
              </FormControl>
              <FormMessage />
            </FormItem>
          )}
        />

        <Button type="submit">Create</Button>
      </form>
    </Form>
  );
};

Conclusion

In this guide, we walked through the process of uploading files and images to an Amazon S3 bucket using tRPC and Next.js. By leveraging presigned URLs, we ensured a secure and efficient file upload flow without overloading the tRPC server with multipart form data.
